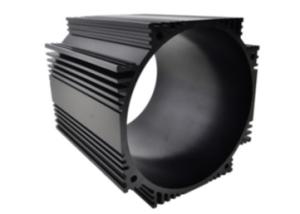

Black Anodized Industrial Aluminum Profile / Cylinder Shell For Motor Housing
Description:
DETAIL FEATURES:
1)Quality material: 6063 (6061, 6060, 6005, 6082 available)
2) Machining: CNC machining (Lathe/ Mill / Polish / Punch / Drill / Tap / Bend/ Weld are available. )
3) Finishing: Silver anodizing (Hard anodized / Powder coating / Painting / Silkscreening, Mill, etc. )
4) Shape: Square (Round, Retangular, Hexagonal, Ovel, Angle, Flat, etc. )
5) OEM design/specifications are welcome
Quotation is usually based on:
1) Detail drawings;
2) Buyers' samples;
3) Specification, pictures of the products.
| Item | Original product | Alternatives |
| Extrusion Tolerance |
GB /T5237-2000
(Chinese Standard) |
EN-755-2/3/6/8, BS-1474, BS 1161
(British Standards)
JIS H4100 (Japanese Standard)
AS/NZS1866-1997
(Australian New Zealand Standard) |
| Machining Tolerance |
GB/T1804-92 |
BS 8118
TS1649 |
Standard for Anodizing |
GB5237.2-2004 |
BS1615: 1987
BS5599: 1993
Mil-A-8625E Type II
Mil-A-8625E Type III |
| Manufacturing process | Die designing→ Die making→ Smelting& alloying→ Extruding→ Cutting→ CNC machining→ Driling→ Tapping→ Surface treatment→ Welding→ Assembling→ Packing | |
| Packing method |
1. Standard packing: Each profile is seperated wrapped in plastic sheet in order to protect the profiles' surfaces, kraft paper wrapped in bundles.
2. Special packing: wooden cases.
3. Bundles or boxes with wooden bars
4. EPE+carton boxes.
5. Customized packing methods are welcomed
6. 13 tons to a 20 feet container, 20 tons to a 40 feet container | |
Applications:
1)QUALITY GUARANTEED: One-stop service, tool design, smelting, extruding, machining, surface treatment, packing as well as assembling can be all finished in house.
2) RELIABLE QUALITY: Our company is ISO9001: 2008 & TS16949: 2009 certified
3) High Efficiency: Most competitive price with short lead time for tooling design and the parts
4) Efficient COMMUNICATION (48-hour quotes price/lead time/MOQ)
5) Compliant test with RoHS
Specifications:
1.Primary Technical Data
1)Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2)Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
2.Specifications:
Excellent material for smooth and subtle edges.
Elegant appearance.
Surface treatment: colorful anodized or electrostatic powder coated.
Suitable for constructions and other industrial purposes.
Customized surface finishes are welcome.
Competitive Advantage:
1)Engineering design and support.
2)Aluminum profiles deeply processing:cutting,punching,drilling,milling,and fabricating.
3)High Quality system, strictly inspection during production and whole inspection before package.
4)Good performance, product warranty for 15 years.
